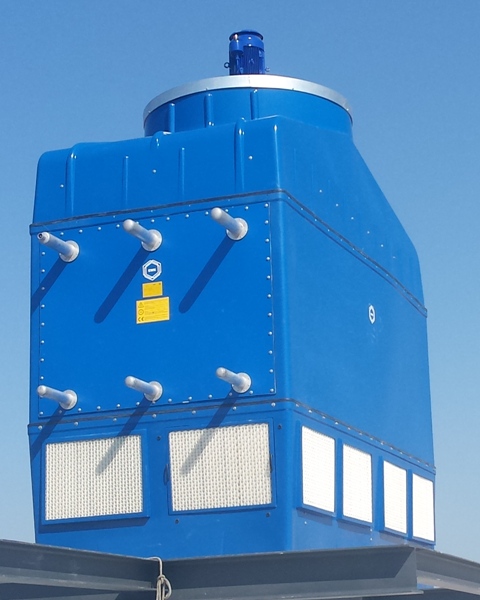

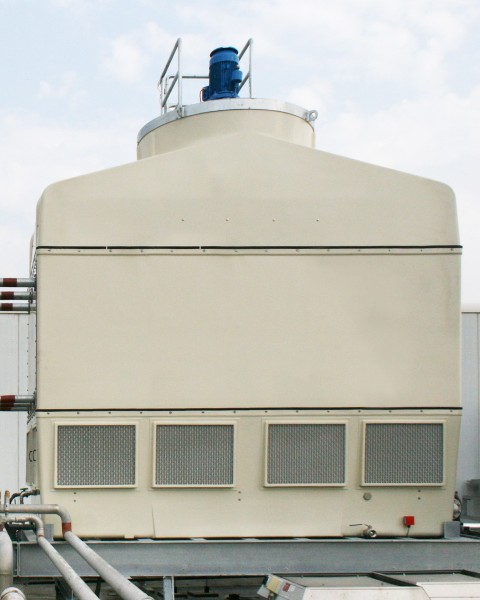

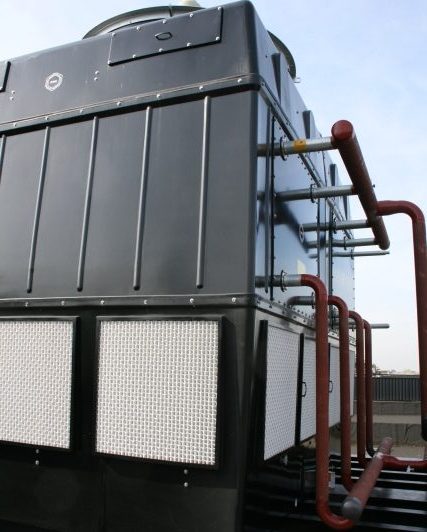

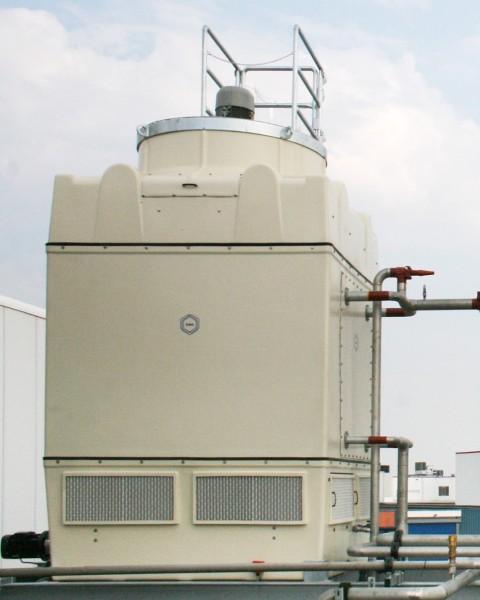

EWK-E

AXIAL VENTILATION

EVAPORATIVE CONDENSER

Evaporative condensers for refrigerant gases.

Direct Transmission (no pulleys or belts).
Low energy consumption
HCS (High Conductivity System) coil, made of hot galvanized steel
Refrigerant fluids: Ammonia and Freon.
Very high heat exchange
Casing made of fiberglass-reinforced polyester
Corrosion free
German engineering
Materials highly resistant to all aggressive conditions, as well as to extreme temperatures
Pre-assembled at the factory
Standard materials in Polypropylene with anti-legionella treatment (SANIPACKING®)

Technical Features

Model	*Dissipation kw	Empty weight kg	Service weight kg	Recirculation Pump kw	Fan power kw	Long mm	Wide mm	High mm
EWK-E 144/2	102	650	1190	0.75	2.2	1790*	1152*	2610*
EWK-E 144/3	140	750*	1290*	0.75	2.2	1790*	1152*	2910*
EWK-E 144/4	166	900*	1440*	0.75	2.2	1790*	1152*	2910*
EWK-E 225/3	228	1092	1601	0.75	3.0	2541	1557	2990
EWK-E 225/4	292	1262*	1774*	0.75	3.0	2541	1557	2990
EWK-E 225/5	390	1437	1954	0.75	3.0	2541	1557	3245
EWK-E 324/4	423	1697	2341	1.5	4.0	3018	1850	3425
EWK-E 324/5	503	1929*	2584*	1.5	4.0	3018	1850	3710
EWK-E 441/5	681	2440*	4600*	2.2	7.5	2733*	2057*	4120*
EWK-E 441/6	826	2850*	5010*	2.2	7.5	2733*	2057*	4350*
EWK-E 680/5	1050	4058	6524	4.0	7.5	3941	2319	4820
EWK-E 680/6	1273	4525*	6999*	4.0	7.5	3941	2319	4420
EWK-E 900/3	783	3640*	6520*	4.0	11.0	5009	2020	4485
EWK-E 900/4	1043	4189*	7087*	4.0	11.0	5009	2020	4485
EWK-E 900/5	1305	4739*	9132*	4.0	11.0	5009	2020	4685
EWK-E 900/6	1565	5290	8230	4.0	11.0	5009	2020	4885
EWK-E 1260/5	2013	7419*	12252*	2×4.0	15.0	4285	3925	4970
EWK-E 1260/6	2498	8251*	13098*	2×4.0	15.0	4285	3925	5125
EWK-E 1800/5	2720	9727*	17521*	2×4.0	22.0	5066	4300	5065
EWK-E 1800/6	3330	10832	18643	2×4.0	22.0	5066	4300	5225
* Heat rejection at the following conditions: Tcond: 36,0 ºC, Twb: 21,0 ºC

Working Principles

The cooling gas is re-circulated through the coil. Meanwhile the secondary circuit water is sprayed over the tubes. At the same time, the fan induces an airflow through the coil evaporating a small part of water. This evaporation is owed to the heat obtained from the gas in the heat exchanger, thereby cooling and condensing the gas itself.

EWK evaporative condensers are characterised by their excellent coil performances and by their long-lasting polyester corrosion-proof casing. These condensers have a low energy consumption due to the efficient aerodynamic design of the top casing and to the vast quantity of airflow. EWK evaporative condensers are also extremely easy to maintain.

In addition to this, evaporative condensers can be easily removed, dismantled and re-galvanised in unfavorable ambient or water hardness conditions.
