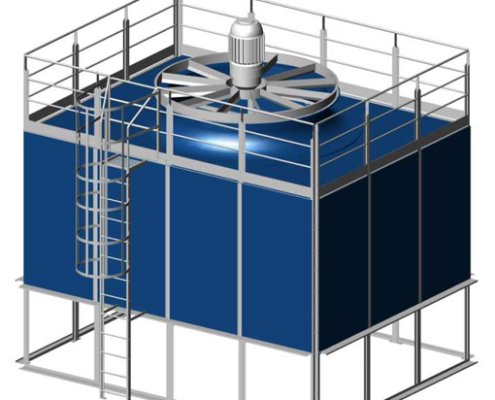

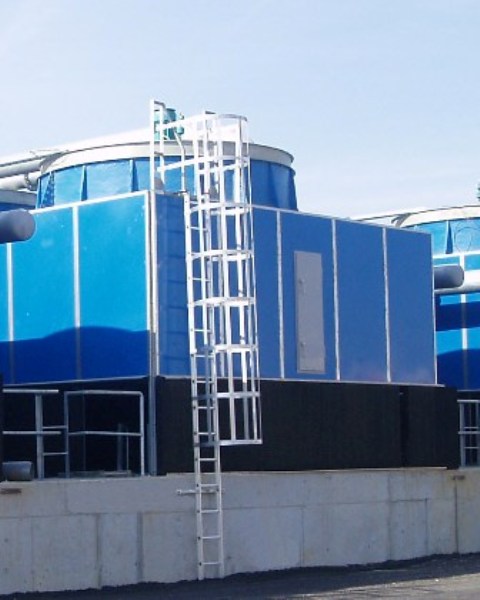

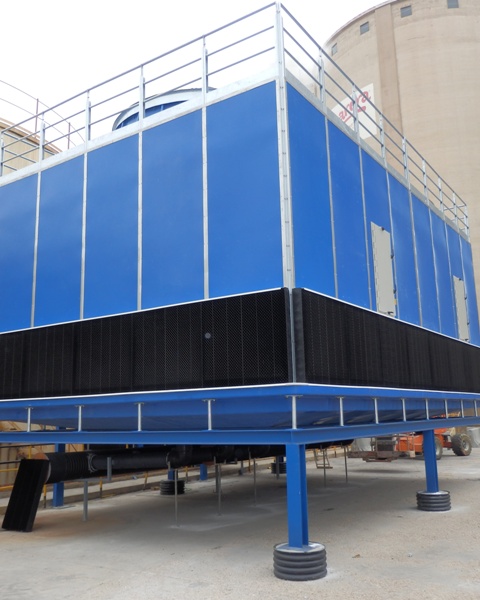

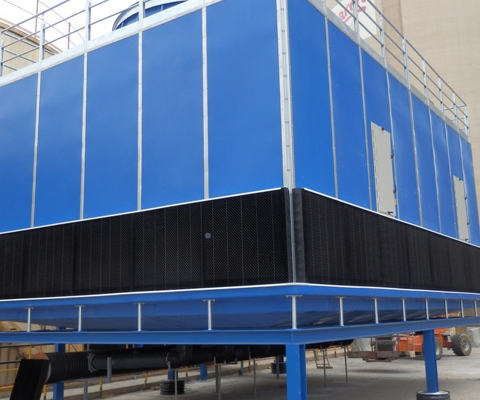

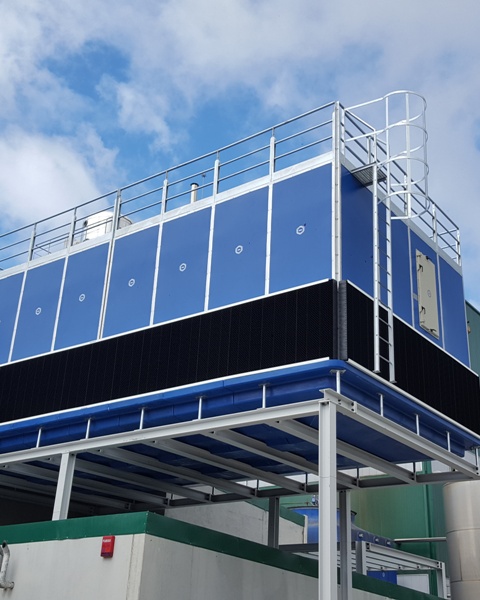

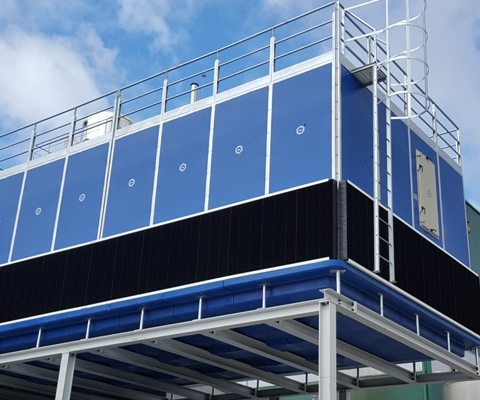

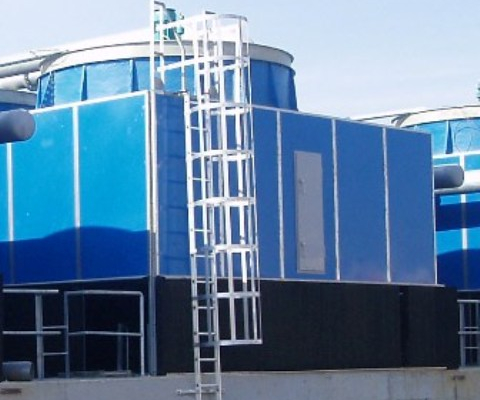

Open circuit Cooling Tower for big volumes and assembled on site
| Model | *Dissipation kw |
Empty Weight kg |
Service Weight kg |
Fan Power kw |
Long mm |
Wide mm |
High mm |
Dim. Drawing Concrete Raft |
Plan Dim. Polyester Raft |
|
|---|---|---|---|---|---|---|---|---|---|---|
| EWB 1730 | 2766 | 3500* | 4900* | 22,0 | 3972 | 5172 | 4711 |  |
|
|
| EWB 2300 | 3677 | 4700* | 6600* | 22.0 | 5172 | 5172 | 4760 | |
|
|
| EWB 2875 | 4597 | 6800* | 9200* | 30.0 | 5172 | 6372 | 5335 | |
|
|
| EWB 3600 | 5756 | 8515* | 11520* | 37.0 | 6372 | 6372 | 4516 | |
||
| EWB 3460 | 5332 | 6800* | 8600* | 2×22.0 | 7622 | 5172 | 4711 | |
|
|
| EWB 4600 | 7355 | 8800* | 12300* | 2×22.0 | 10022 | 5172 | 4760 | |
|
|
| EWB 5750 | 9193 | 11600* | 16400* | 2×30.0 | 10022 | 6372 | 5335 | |
|
|
| EWB 7200 | 11512 | 14525* | 20535* | 2×37.0 | 12422 | 6372 | 5564 | |
||
|
* Heat rejection at the following conditions: Tin: 35,0 ºC, Tout: 30,0 ºC, Twb: 24,0 ºC |
||||||||||
Cooling towers bring a cold and dry air mass in counter-flow to hot water that comes from an industrial or air conditioning process. Part of this water evaporates, cooling the rest. The necessary heat for this is approx.597 Kcal/liter. The cold water produced is returned into the process to re-initiate the cycle. The equipment with this evaporative refrigeration principle are very important for energy efficiency in industrial processes.
The difference between the required cold water temperature and the wet bulb temperature (called cooling limit distance), is significant to determine the size of the tower. The smaller the cooling distance is, the bigger the interchanging surface is needed. The limit distance must be of at least 3-4º C.
In open cooling towers there is a close contact water-air, which is bigger thanks to the fill packings, that provide a big surface of exchange, improving performance and evaporation. There are different kinds of fill packing for different water quality.
