EWK-I

  • AXIAL VENTILATION
  • CLOSED CIRCUIT

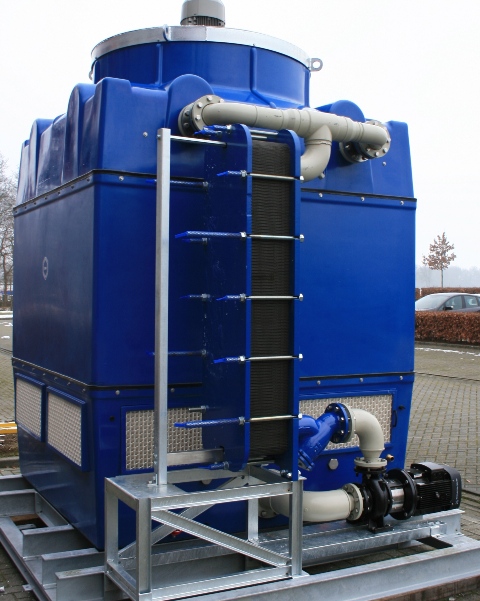

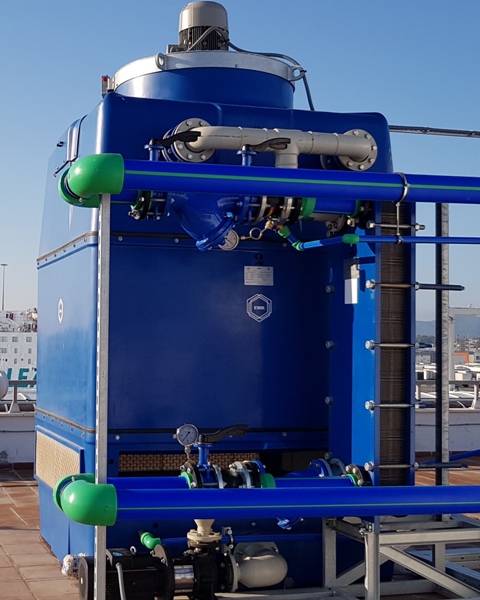

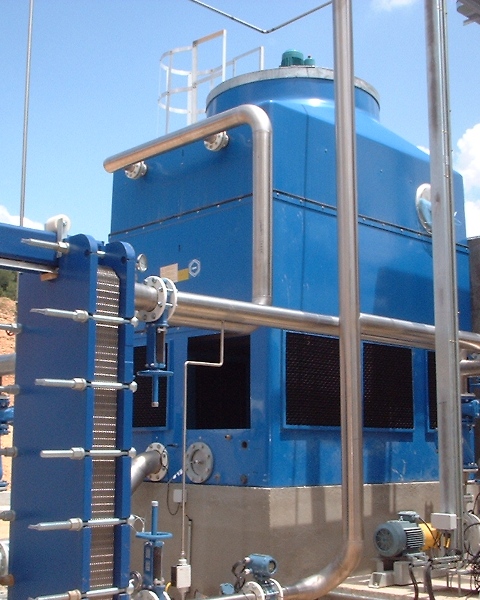

Close circuit cooling towers with external stainless steel heat exchanger.

  • Low energy consumption
  • German engineering
  • Compact casing made of fiberglass-reinforced polyester
  • Corrosion free
  • Direct Transmission (no pulleys or belts).
  • Materials highly resistant to extreme temperatures
  • Standard Fill materials in Polypropylene with anti-legionella treatment (SANIPACKING®)
  • Pre-assembled at the factory / Easy installation
  • Easy cleaning
  • Y Strainer installed in the secondary circuit to reduce possible contamination of the heat exchanger.
  • Distribution pipes in Polypropylene

Technical Features

Model *Dissipation
kw		 Empty weight
kg		 Service weight
kg		 Recirculation Pump
kw		 Fan Power
kw		 Long
mm		 Wide
mm		 High
mm		 Dim. Drawing Plan
DWG
EWK-I 144 171 635 945 4,0 2,2 2046 1559 2925 seleccionar seleccionar
EWK-I 225 261 813 1382 5.5 3.0 2319 1745 3100 seleccionar seleccionar
EWK-I 324 389 1221 1947 5.5 4.0 2638 1988 3425 seleccionar seleccionar
EWK-I 441 528 1656 2739 7.5 5.5 3002 2150 3459 seleccionar seleccionar
EWK-I 680 814 2529 5085 15.0 7.5 4132 2724 4550 seleccionar seleccionar
EWK-I 900 958 2640 5701 11.0 11.0 5079 2724 4485 seleccionar seleccionar
EWK-I 930 1113 3035 5086 15.0 11.0 5180 2724 4690 seleccionar seleccionar
EWK-I 1260 1509 5051 10191 2×15.0 15.0 4836 4332 4770 seleccionar seleccionar
EWK-I 1800 2073 5720 13810 2×15.0 22.0 5538 4836 4805 seleccionar seleccionar

* Heat rejection at the following conditions: Tin: 35,0 ºC, Tout: 30,0 ºC, Twb: 24,0 ºC

EWK Smart Option

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1

VARIABLE SPEED DRIVES (VSD)
VSD´s adjusts the rotation speed of the fan motors according to the parameters set on the control panel. This device integrates the control software with PID algorithms, which optimize energy consumption and recommend preventive maintenance. The VSD is able to monitor the following useful information about the motor:

– Motor rotation speed.
– Current through the motor coils.
– Voltage.
– Real electric consumption, etc.

2

PRIMARY CIRCUIT PUMPING CONTROL
Regulation of the primary circuit pumping according to the process parameters.

3

WATER MAKE-UP FLOWMETER
This device records the amount of make-up water that is fed into the cooling tower.

4

PACK FOULING MONITORING
The “Smart Cooling Tower” can detect the accumulation of dirt, lime scale, biological film, etc. within the packing. The control panel monitors the level of fouling and can advise when the pack needs to be cleaned or replaced. This avoids any loss of thermal performance due to fouling.

5

OIL / MOTOR TEMPERATURE PROBE
This sensor measures vibrations in the fan/motor set in real time. If abnormal vibration is detected it can send an alarm signal or even stop the fan. This way we will prevent damage to the fan.

6

WATER LEVEL CONTROL
This sensor is located in the water basin and constantly monitors the water level and compares it against the set high and low level parameters. The sensor will send high and low level alarms to the control panel should the water level fall out of the set parameters, preventing the sump from draining down or overflowing. Additionally, in the event of a low level alarm the control panel will switch off the electric heater so as not to damage the casing. When the level is normal the equipment works with no restriction.

7

VIBRATION SENSOR
This sensor measures vibrations in the fan/motor set in real time. If abnormal vibration is detected it can send an alarm signal or even stop the fan. This way we will prevent damage to the fan.

8

PRESSURE PROBES

9

ELECTRIC HEATER
This heating element is designed to heat the water in the area closest to the cooling tower discharge, thus ensuring that the pumps are not starved of water upon start up. Thanks to this device, the water in the sump is prevented from freezing avoiding damage to hydraulic elements. The control panel can set the maximum and minimum temperature and the required hysteresis in the sump.

10

CONECTIVITY
Using a Modbus TCP/IP (two way) communication system, full remote access of the ”Smart Cooling Tower” is possible anywhere in the world using a PC or smart device. This system allows full monitoring of the towers functionality and ensures that any alarms are received and actioned by key personnel on or off site.

11

VARIABLE SPEED DRIVES (VSD)

12

INLET TEMPERATURE PROBES

13

INLET TEMPERATURE PROBES
Inlet temperatures are constantly monitored using built in temperature probes. The control panel uses the temperatures obtained to optimize the tower functionality and control using the VSD

14

VIBRATION SENSOR / TEMPERATURE PROBE

15

TEMPERATURE AND HUMIDITY PROBE (STHE)

16

ELECTRIC HEATER

17

PRESSURE PROBES
PRIMARY: Allows accurate monitoring of the process water flow rate.

18

CONTROL PANEL
The control panel oversees and monitors the autonomous management of the ”Smart Cooling Tower”, based on the set parameters and the information gathered from the various probes installed. The main component is a PLC that integrates algorithms PID to optimize the power consumption of the fan motors and circulating pumps motors, according to the set-point values introduced. Please note that the circulating pumps are only available on our closed-circuit tower range.

The control panel comes as standard with a 7” touch screen, allowing full operational control of the ”Smart Cooling Tower”. As an optional extra the screen size can be increased to 10”.

19

TEMPERATURE AND HUMIDITY PROBE (STHE)
The Temperature and Humidity sensor monitors the outdoor conditions around the cooling tower, making it possible to remotely appraise the performance of the ”Smart Cooling Tower”, based on the design criteria.

20

SCHEDULING CONTROL
Using the ”Smart Towers” scheduling capabilities to only run the tower during set periods of the day, reduces energy consumption over a 24hr period. As a result, less energy is used and lower noise levels are observed during off peak hours when there is less demand for heat rejection.

21

TEMPERATURE PROBE IN THE BASIN
It is installed at the sump to monitor the cold-water temperature. This probe controls the operation of the electric heater in the sump.

Working Principles

The fluid to be cooled (usually water) flows through the external heat exchanger without coming into direct contact with the external air, preventing dirt or pollution from entering the primary water circuit.

At the same time in the tower, the fan located in the upper part, intakes air in counterflow to the water, thereby releasing the latent heat of evaporation into the atmosphere. The rest of the cooled water is impulsed from the tray by means of a pump to the exchanger.
The heat dissipation is carried out in the exchanger, in whose plates the water from the tower and the fluid to be cooled are interleaved.

Additional equipment

  • PRFV with SANIPACKING® treatment casing
  • Access ladder & Hand rail to the fan motor
  • Fill media access door in Polypropylene
  • Vibration switch for ventilation equipment
  • Electric motor frequency converters
  • PTC sensor for the motor
  • Exhaust silencer
  • Low noise fan
  • Sensors for the level of water in the basin.
  • Winter pack (Thermostat & Immersion heater) to protect from low temperatures
  • Water treatment dosing system
  • Attenuators of noise from the drops in the basin
